How To Unbrick Huawei Honor 7X By Installing Stock Firmware

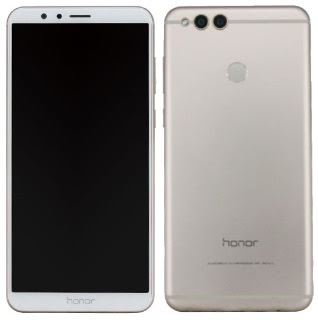

Honor 7X is a 5.93 inches IPS LCD capacitive display device with a screen resolution of 1080 × 2160. The smartphone which is available in three variants comes in a 64GB, 32 GB of internal storage with 4GB RAM and 32 GB of internal storage with 3 GB of RAM with an expandable memory 256GB using a  Micro SD. See HERE for full specifications.


In this post we will be sharing with you, how you can download and restore Honor 7X Stock Firmware on you device. First charge your smartphone battery up to 50-60%, then backup of your data before processing with the process. Now download Huawei Multi-Tool from HERE and extract the file on to your PC. Now download A10 and TL10 (China) from HERE and L21 (Europe) HERE.

Instructions to Restore Honor 7X Stock Firmware

Being the process by Downloading and Installing TWRP on your Device from HERE and then follow this by Downloading the ‘update.zip’ package for your phone’s model number and extract it to an easily accessible location on your PC. Name the folder ‘UPDATE‘.

Now Before you can restore Honor 7X stock firmware, you will need to extract the vendor image from the firmware. So, open the Huawei Multi-Tool and go to the ‘Unbrick‘ tab.

Now Click on the ‘Launch Huawei Update Extractor‘ button.

Go to the ‘UPDATE’ folder and select the ‘UPDATE.APP’ file in the Extractor window. Then right-click on an empty space and select ‘Extract All‘.


Go to the folder where the content was extracted and copy the ‘vendor.img‘ file to the phone’s SD card.

Boot your Honor 7X into TWRP by holding the Volume Up and Power buttons together.

Once in TWRP, go to ‘Wipe’ -> ‘Advanced Wipe’ and select all the checkboxes, except the SD card. Swipe the button on the screen to wipe the phone.

Go back to the TWRP main screen and press the ‘Install’ button. Select ‘Install Image’ option and choose the ‘vendor.img’ file and flash it.

Next, go to ‘Reboot’ menu and tap on ‘Bootloader’.

Once your phone is in Fastboot/Bootloader mode, connect it to the PC and carry on with the steps to restore Honor 7X stock firmware.

Now download the region-based update zip (update_BND-ModelNumber_hw_Region.zip). E.g: update_full_BND-AL10_all_cn.zip.

Repeat step 3 to 5 again and extract the ‘CUST.img‘ file.

Copy this file to the ‘UPDATE‘ folder, where the update.zip file was extracted earlier.

Now to finally restore Honor 7X stock firmware, open the Huawei Multi-Tool and go to the ‘Unbrick’ tab again.


Click on ‘Specify a folder‘ option and select the ‘UPDATE‘ folder. Once selected, click on the ‘Unbrick‘ button.

The tool will build up the firmware and install it on your device. The process may take up to 15-20 minutes, so be patient during this time. Once done, simply disconnect the device and reboot it.
